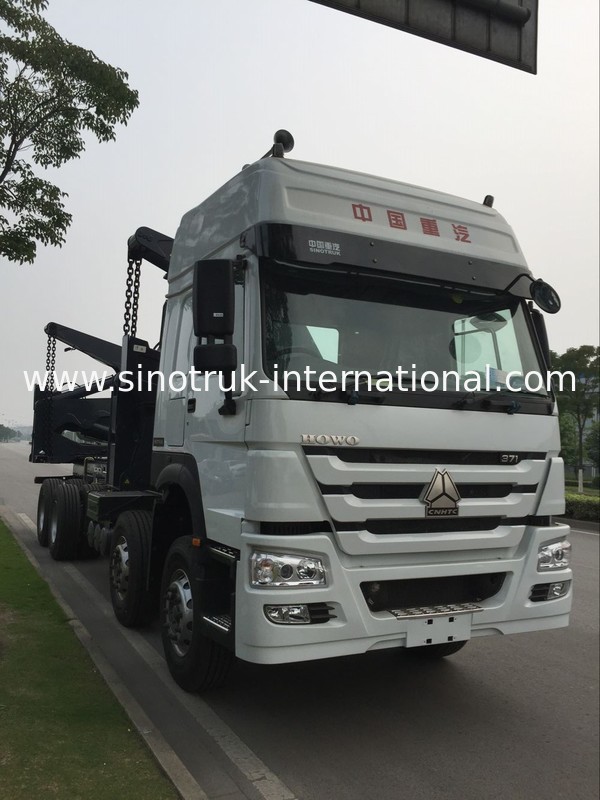

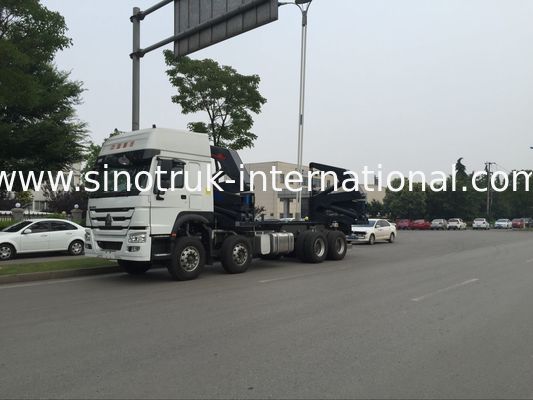

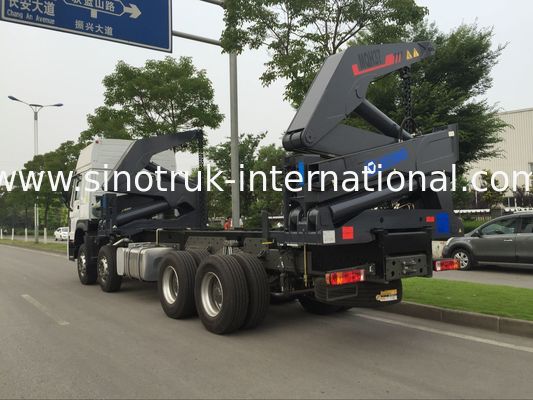

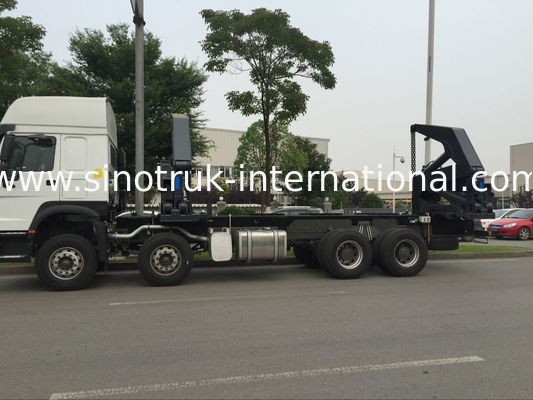

20ft Truck Mounted Crane Side Loader Sidelifter , Container Self Loading Sinotruk

Name: HOWO 8X4 20Feet Container Sider Loader
Cranes:
Type: Side lifting RH standard, LH option
Lifting capacity: 37 tons
Design standard: GB/T 3811-2008
Container type: 1X20ft
Material: High tensile steel
Optimum gap trailer to container: 400mm
Maximum gap trailer to container: 1.5m
Maximum crane reach: 4 m center to center
Maximum stabiliser extension: 3.2 m center to center

Truck Chassis: Chassis Model: ZZ1317N4667W(HOWO) 8X4 RHD
Engine:WD615.69, Euro2, 336HP,
Cab: HW76,With single berth, with A/C
Speed Changer: HW19710
Drive Axle: MCY16, 2X13000KGS
Front Axle: HF7 rigid stubaxle with double T-cross section
Steering Gear: German ZF8118 hydraulic steering with power assistance
Maximum driving speed: 90 km/h
Maximum gradeability (%): 45
Fuel consumption (l/100 km): 32
Wheel base: 1800+4600+1350 mm
Front/Rear wheel track: 2022 mm,1830 mm
Front/Rear overhang: 1500 mm, 2734 mm
Tyre: 295/80R22.5 Tubeless tyres
Over length of the truck: 11190×2610×4000 mm Total weight: 31000kgs

Hydraulic system:
Hydraulic pump: gear type Italy brand
Hydraulic directon control valves: AMCA Europe brand

Electrical control system: German brand
Voltage: 12V

Hydraulic power pack:
Motor: Japan Corporation
Cable carrier : Important brand

Specification:

HOWO 8X4 20Feet Container Sider Loader

Applications:

Container Sider Loader which can widespread use in transportation, for all kinds 40 or 20 feets container,

popular used in sea port.

Competitive Advantage:

1) the key parts adopt the world's top technology products
2) based on strong technical support and top level technology make the trucks with high quality and

more reliable

3) Product is made of high strength steel plate welding, increase the structural strength, reduce the weight of the engine, greatly improving the lifting performance

4) Adopted imported hydraulic pump, valve and other hydraulic components, lock micro products, to ensure safety and durability

5) Front and back high spray is optional, water jet diffusion function, 360 degrees of rotation,

150 degree tilt up and down. Options small flow pump, spraying reel to wake insecticidal garden trees flowers and plants

6) with all kinds of truck model, which can fulfill your requirement

7) Hexagon bending forming jib, reduced the horizontal shaking, make the operation more safety; Rotating device is made of high quality rotary support and reducer, make the action more supple and smooth.

8) External sandblasting processing of tank, internal anti-corrosion treatment, Outside surface adopts advanced polyurethane paint, beautiful appearance

9) competitive price, cost-effective
10) quick and efficient spare parts supply bring you more convenient

11) fast delivery time, we can arrange production according to your needs exactly and quickly

12) professional import and export dealing procedure, make customs clearance more high efficiency
