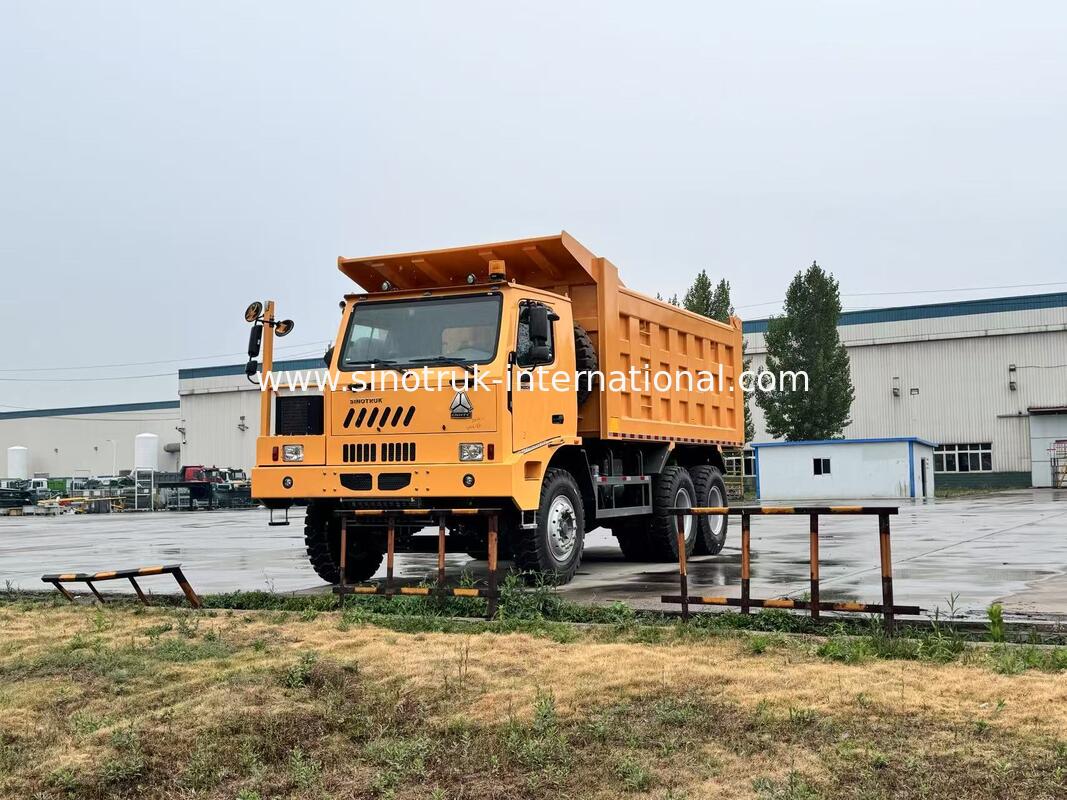

Name: 6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry
Brand: SINOTRUK INTERNATIONAL CO., LTD.
SKU: ZZ590HV384KB3B
Price: 58,000.00 USD
Availability: InStock

Главная страница Продукция Тележка сброса Tipper

6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry

Подробная информация о продукте:

Место происхождения:	Китай
Фирменное наименование:	SINOTRUK Yellow River
Сертификация:	ISO/3C/BV/IFA/SGS
Номер модели:	ZZ590HV384KB3B

Оплата и доставка Условия:

Количество мин заказа:	1 единица
Цена:	Подлежит переговорам
Упаковывая детали:	Обнаженная или воску в роро или объемном корабле
Время доставки:	25 рабочих дней после получения авансового платежа
Условия оплаты:	Т/Т, Л/К, Вестерн Юнион
Поставка способности:	3000 UNIT в месяц

контакт

Подробное описание продукта

Название продукта:	Сбросчик с подъемником	Модель:	ZZ590HV384KB3B
Тип привода:	LHD 6X4	Рулевое управление:	ZF8118
Двигатель:	WP12.430E201, 430HP	Стандарт выбросов:	Евро 2
Выделять:	Самосвал-самосвал 6X4 с левым рулем, Самосвал-самосвал для горнодобывающей промышленности, Самосвал-
Выделить:	6x4 mining tipper 90 ton , 430HP mining dump truck , heavy duty tipper lHD

Description:

SINOTRUK features a self-developed new front axle assembly, adopting an integral cast steering beam and 500×210 reinforced brake to optimize truck component assembly technology.

The rear axle is equipped with a 35-ton mining drive axle with a more rationally designed main reducer structure, reinforced cast axle housing and drum brakes. The vehicle’s load-bearing capacity and braking performance rank at the leading level among domestic counterparts.

It is fitted with a HW21712 gearbox and HW70 power take-off, delivering a maximum torque of 700NM.

The truck is equipped with a 500-liter D-type fuel tank (400-liter fuel tank optional) to fully meet diverse vehicle operation and workload requirements.

Wheel & tire configuration: 10.0/2-25 wheel assembly, fitted with standard 14.00-25-36PR tires and optional original 14.00R25-36PR tires. These are custom high-load and high-wear-resistant special tires exclusively designed for heavy-duty mining scenarios.

The HOWO Mining Dump Truck adopts a unilateral high-strength skeleton cab with a simple and rugged exterior design and broad driving vision. Its superior sealing performance ensures a consistently safe and comfortable driving environment. Two lighting lamps are respectively installed at the front and rear top of the cab to support stable night operation.

Specification:

Sinotruk Howo 6×4 Mining Tipper 90Ton 430HP LHD

Model

ZZ5907V414L

Drive Type

6×4

Engine

WP12.430E201,430 HP( Euro II)

6 cylinder in-line with water cooling, turbo-charging & inter-cooling,4 stroke electronic fuel injection diesel engine

Displacement : 11.596L

Cabin

HW7D unilateral high strength skeleton cab(with one sleeper, air-conditioner and new-style seat)

Transmission

HW21712(12 forwards & 2 reverses)

Front Axle

VGK20,20T

Driving Axle

MCK45ZG,2X45T

Steering

ZF8118 hydraulic steering with power assistance.

Speed ratio

10.47

Rim/ Tire

14.00-25,14.00R25,Radial tire

Wheel base

3800+1500(mm)

Overall dimension

8700×3300×4100(mm)

Cargo body

5800×3200×1800(mm),Bottom:16mm, Side:12mm

The curb weight

29400(Kg)

Oil tank

500L

Max. speed

40km/h

Color

White, red, green, golden and so on.

Applications:

HOWO 90-ton Mining Dump Truck is a custom model researched and developed by our dedicated heavy engineering technical team. Focused on short-distance transport operations under extremely tough site conditions, this dump truck fits a wide range of application scenarios such as open-pit coal mines, steel factories, hydropower engineering projects and docks with rugged, inferior road conditions. Built to target professional mining user groups, it can create prominent economic returns and comprehensive social benefits for every operator.

Competitive Advantage:

1.Competitive pricing with outstanding cost performance

2. Low fuel consumption to reduce operating costs

3. Powerful heavy-duty engine with sufficient power output

4. Complete range of truck models to meet all your demands

5. Supported by strong technical strength and top-tier technology, our trucks feature premium quality and great reliability

6. Core key components adopt world-class premium parts

7. Custom cargo bodies can be tailor-made as you require, with light tare weight, high rigidity and large load capacity

8. Built with high-strength steel for long service life, safe operation and high transport efficiency

9. Short delivery lead time; we arrange customized production quickly per your requirements

10. Professional import & export procedures for highly efficient customs clearance

6×4 Mining Tipper 90Ton 430HP LHD SINOTRUK HOWO For Mining Industry 0
